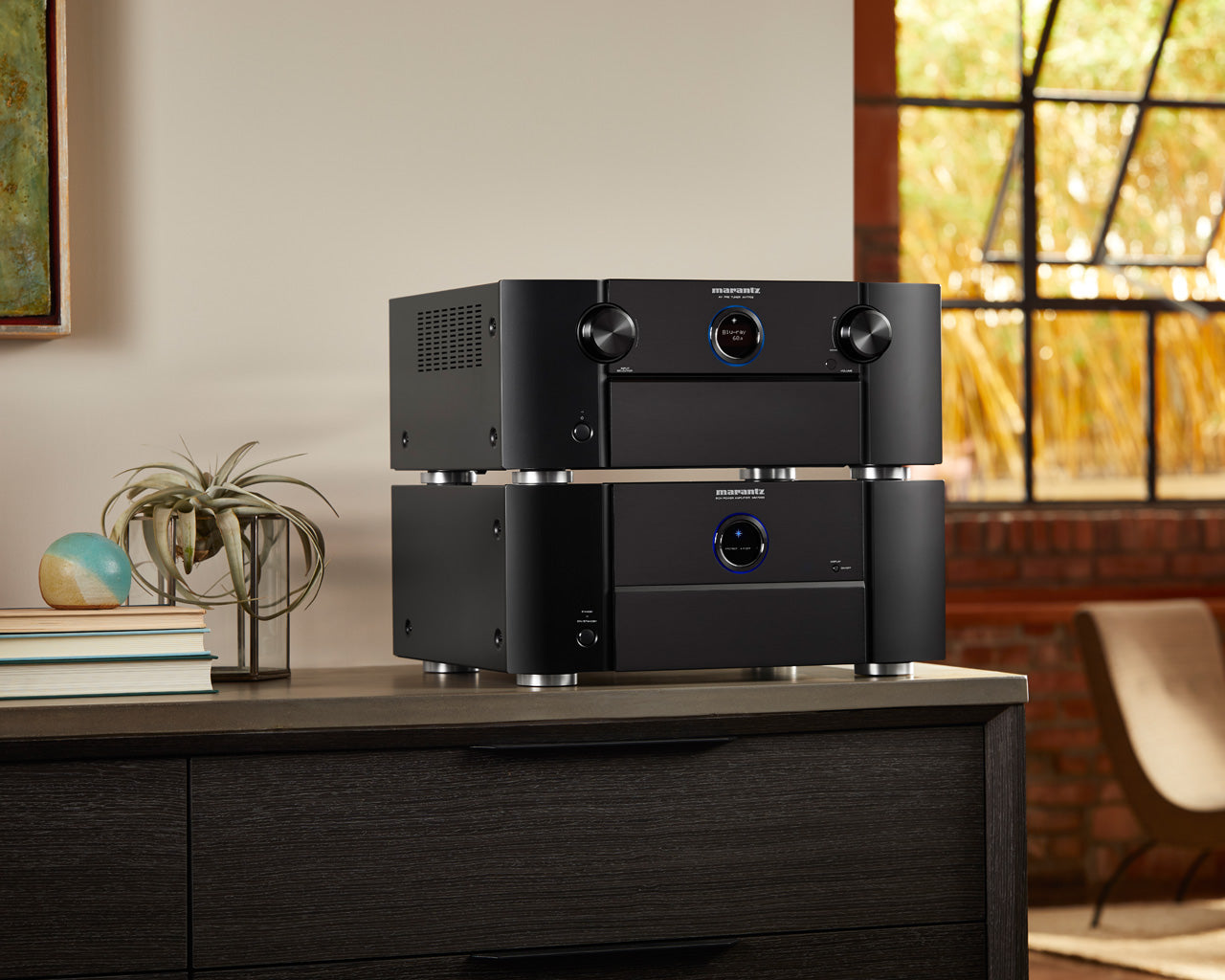

Marantz AV7705 N1B
- 11.2 channel XLR pre-out; 11.2 channel RCA pre-out
- 8 HDMI inputs (incl. 1 front) with full HDCP 2.2 support; 3 HDMI outputs (incl. Zone 2)
- 4K/60 Hz full-rate pass-through, Dolby Vision compatibility, HDR, HLG and BT.2020
- Advanced video processing with analogue to HDMI conversion; SD to HD/4K upscaling
- Dolby Atmos, DTS:X (up to 7.1.4 with an external 2ch amplifier), Auro-3D and DTS Virtual:X for height virtualization effects
- eARC (Enhanced Audio Return Channel) support via firmware update supports the most advanced surround and object-based audio formats via single HDMI connection between AVRs and compatible TVs
- Stream music from Internet Radio, Spotify Connect, TuneIn Internet Radio, Amazon Music, TIDAL, Deezer and more with Bluetooth, Airplay2 or HEOS built-in
- Built-in Wi-Fi with 2.4GHz/5GHz dual band support
- Enjoy multi-room whole-home audio streaming with HEOS technology
- Amazon Alexa voice control via the HEOS Home Entertainment skill
- Marantz 2016 AVR remote app for control over the latest generation of Marantz network AV Receivers. Available on iOS and Android.
- High resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support
- AKM AK4458 32-bit D/A converters, HDAM circuit boards and Current Feedback circuitry for optimum fidelity and maximum dynamic range
- Suite of Audyssey room correction software: Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC and Sub EQ HT
- Third-party integration and IR remote control, RS-232C serial port and Creston Connected for external control
- Seamless out-of-the-box experience with Quick Start Guide, guided Setup Assistant and Marantz AVR Remote App
With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7705 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055 and MM7025. Not only is it a superb AV processor, the AV7705 is an extraordinary analogue preamplifier with an HDAM circuit board. Using Marantz-proprietary HDAMs, the preamp section of the AV7705 provides optimal channel separation, minimum crosstalk and enhanced signal to noise ratio for precise detail resolution and stereo imaging, while the ELNA capacitators of the analogue section ensure exceptional power and dynamic ability.
Immerse yourself in multi-dimensional audio with Dolby Atmos, DTS:X, Auro-3D and DTS Virtual:X. Set up a Dolby Atmos surround sound speaker system up to 7.1.4 using Dolby Atmos elevation speakers or dedicated overhead speakers for the ultimate home theatre experience. DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favourite movies. The included DTS Neural:X™ gives your movies, games and music a realism unmatched by traditional 5.1 surround sound. Auro-3D® elevates the home theatre experience with three-dimensional sound for music, games, broadcast and films with enhancing your existing audio-visual collection, thanks to Auro-matic up-mixing engine. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 5.1, 7.1 or 2.1 speaker arrangement.
Immerse yourself in multi-dimensional audio with the latest surround formats, including IMAX Enhanced, Dolby Atmos, DTS:X and DTS Virtual:X.
IMAX Enhanced Technology
Get the most premium at-home entertainment experience with IMAX Enhanced—the latest technology program from IMAX that sets a new standard for image, sound, scale and content quality. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio delivered by DTS. See more picture on the largest screens. And experience premium content digitally remastered by IMAX.
Feel every dimension in Dolby Atmos. Enjoy a 7.1.4 surround sound speaker system with two or four additional overhead speakers or Dolby Atmos elevation speakers for the ultimate home theatre experience — including Dolby Surround up-mixer for legacy content.
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all of your favourite movies.
DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 5.1, 7.1 or 2.1 speaker arrangement.
Includes eight HDMI inputs — with one HDMI input on the front panel for quick connection — each one supporting HDCP 2.2, 4K Ultra HD 60Hz video, 4:4:4 Pure Colour sub-sampling, Dolby Vision, HLG, High Dynamic Range (HDR), 21:9 video, 3D and BT.2020 pass-through. The video processor is capable of upscaling SD and HD video to 4K Ultra HD. Three HDMI outputs allow you to connect to multiple zones as well as run a TV and projector in parallel.
eARC (Enhanced Audio Return Channel) supports the transmission of 3D audio from your TV with a single HDMI connection for the simplest setup. The feature will be enabled via a future firmware update.
Dual antenna system lets you stream the most popular music services via Bluetooth, AirPlay2 or the HEOS app. Listen to your playlists on Spotify, TuneIn, Deezer and more.
Built-in HEOS technology lets you enjoy your favourite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, TuneIn, Sound Cloud, Tidal, Napster, Deezer or your local music file libraries. With additional HEOS components, like HEOS-capable speakers, play all your music in one room or many.
Enjoy hands-free control with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for the AV7705, HEOS devices and other select Marantz products.
Stream audio from your favourite music services like Apple Music and Spotify or watch videos from services like Youtube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers Airplay 2 sources.
Discover the incredible fidelity of high resolution audio tracks with the ability to decode up to 24-bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) via the front panel USB port and network sources. Or, listen to other popular file types such as MP3.
For optimum fidelity and the widest dynamic range with lowest distortion, the AV7705 features advanced reference-class 32-bit AKM D/A converters on all channels. This ensures consistent high fidelity and precise channel matching across all channels for the ultimate listening experience.
The Marantz 2016 AVR Remote app for iOS and Android gives you complete control over the latest Marantz network AV receivers. Use it to power on/off, adjust volume, input and settings, or switch instantly to the HEOS app.
The AV7705 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance and maximum dynamic range for optimum sound quality. Current Feedback technology, first introduced by Marantz more than 60 years ago, replaces voltage feedback configuration that’s typical of AV receivers and delivers wide, closed-loop bandwidth and steep slew rate for superior fidelity with wideband audio sources.
The HDAM component of the Marantz AV7705 outperforms op-amp solutions due to its high speed and maintains a clean audio signal for exceptional sound performance.
Equipped with the full Audyssey Platinum suite of advanced DSP algorithms, the AV7705 features Audyssey MultEQ XT32 automatic room acoustic correction. With the supplied measurement microphone, MultEQ XT32 analyses each speaker's output (including the subwoofers) at up to 8 measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response.
Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full-range balance, including deep bass, without disturbing neighbours or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition. Plus, the Audyssey MultEQ Editor app lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes.
Ideal for custom installs and remote troubleshooting. The AV7705 has a range of features to provide enhanced control and compatibility with third-party and custom integration solutions, including IP control, either via wired LAN connection or Wi-Fi. For compatibility with other components, use the remote-control input and output on the rear panel, along with a flasher input and a 12V trigger output. For direct connection to external home automation and control equipment, an RS-232C serial port provides remote monitoring. The AV7705 also features Crestron Connected for quick and easy integration with home automation equipment.
Watch a movie in one room while another family member listens to a CD in a different zone without interruption. Enjoy 7.1-channel surround sound in the main room and a separate source or music stream in another.
Dual Subwoofer Outputs
Surround yourself with even, accurate bass. The AV7705 features two subwoofer outputs to smooth low frequencies and improve bass dispersion, avoiding peaks and audible dips.
◆ 11.2 channel XLR pre-out; 11.2 channel RCA pre-out
◆ 8 HDMI inputs (incl. 1 front) with full HDCP 2.2 support; 3 HDMI outputs (incl. Zone 2)
◆ 4K/60 Hz full-rate pass-through, Dolby Vision compatibility, HDR, HLG, and BT.2020
◆ Advanced video processing with analog to HDMI conversion; SD to HD/4K upscaling
◆ Dolby Atmos, DTS:X (up to 7.1.4 with an external 2ch amplifier), Auro-3D, and DTS Virtual:X for height virtualization effects
◆ eARC (Enhanced Audio Return Channel) support via firmware update supports the most advanced surround and object-based audio formats via a single HDMI connection between AVRs and compatible TVs
◆ Stream music from Internet Radio, Spotify Connect, Pandora, SiriusXM, Amazon Music, TIDAL, Deezer, and more with Bluetooth, Airplay2, or HEOS built-in
◆ Built-in Wi-Fi with 2.4GHz/5GHz dual-band support
◆ Enjoy multi-room whole-home audio streaming with HEOS technology
◆ Amazon Alexa voice control via the HEOS Home Entertainment skill
◆ Marantz 2016 AVR remote app for control over the latest generation of Marantz network AV Receivers. Available on iOS and Android
◆ High-resolution DSD (2.8/5.6MHz), FLAC, ALAC, and WAV support
◆ AKM AK4458 32-bit D/A converters, HDAM circuit boards, and Current Feedback circuitry for optimum fidelity and maximum dynamic range
◆ A suite of Audyssey room correction software: Audyssey MultEQ XT32, Dynamic Volume, and Dynamic EQ, LFC and Sub EQ HT
◆ Third-party integration and IR remote control, RS-232C serial port, and Creston Connected for external control
◆ Seamless out-of-the-box experience with Quick Start Guide, guided Setup Assistant, and Marantz AVR Remote App
